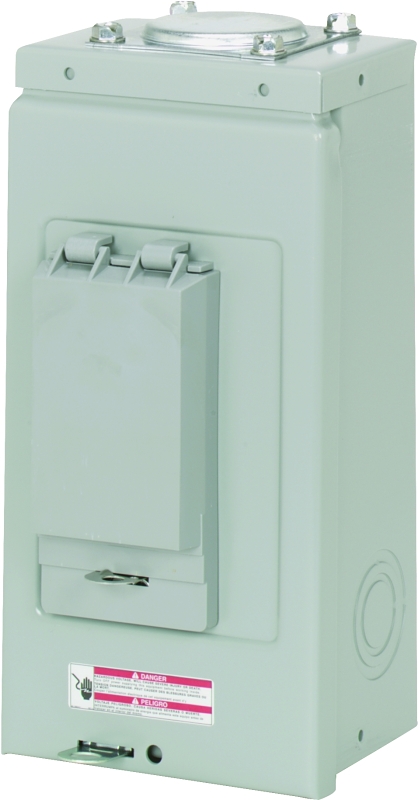

Cutler-Hammer CH Series CH2L70RP Load Center, 70 A, 2-Space, 4-Circuit, Main Lug, NEMA 3R Enclosure

Be the first to review this product

Panels are supplied with split insulated neutrals with an insulated cross strap
For service entrance applications, the neutral must be bonded by using the bonding strap supplied with the panel
For service entrance applications, the neutral must be bonded by using the bonding strap supplied with the panel
For service entrance applications, all that is required to bond the neutral is to loosen the bonding screw and the neutral screw directly beside it, insert the bonding strap into the neutral bar and retighten both connections

SKU: C112-19045

Brand part number: CH2L70RP

Availability:

IN STOCK NOW : 6

Ships in 2-3 DAYS : 7

Call For Price

Overview
Specifications
Reviews
Contact Us

Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Products specifications

Breaker/Load Center Type	Main Lug
Bus Bar Material	Copper
Cable Size	14 to 2 AWG
Current Rating	70 A
Enclosure Type	NEMA 3R
Interrupt Rating	10 kA
Number of Circuits	4
Number of Phases	1
Number Of Spaces	2
Voltage Rating	120/240 V
Wiring Configuration	3-Wire
Brand	Cutler-Hammer
Manufacturer	CUTLER-HAMMER
