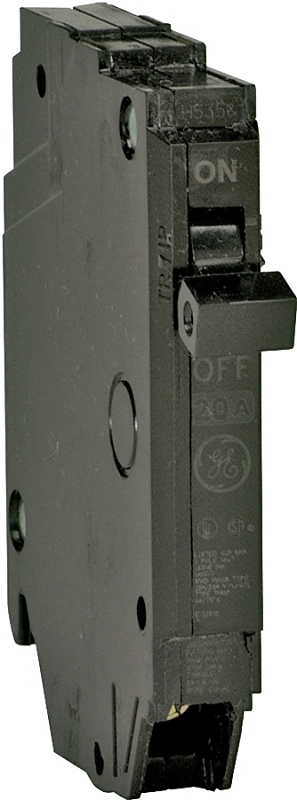

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 A #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
Products specifications
|
Actuator Type
|
Toggle |
|
Current Rating
|
20 |
|
Dimensions
|
3.28 in L x 0.5 in W x 2.58 in H |
|
Frame Type
|
Q-Line |
|
Interrupt Rating
|
10 |
|
Mounting Type
|
Plug |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Operating Frequency
|
50/60 |
|
Operating Temperature
|
60 to 75 |
|
Suitable for
|
Reverse Feed |
|
Terminal Type
|
Lug |
|
Trip Type
|
Non-Interchangeable |
|
Type
|
Type THQP |
|
Voltage Rating
|
120/240 |
|
Wire Size
|
14 to 8 12 to 8 |
|
Manufacturer
|
LCM DISTRIBUTIONS |
