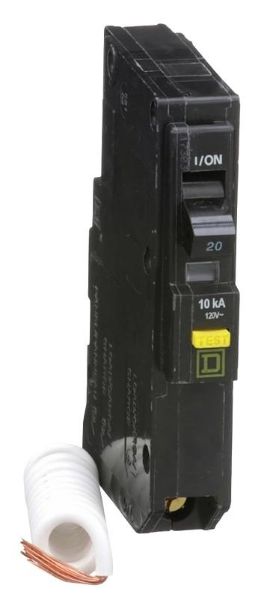

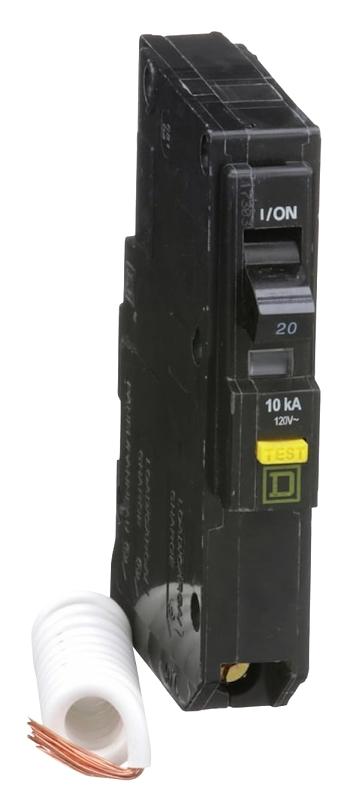

All QO circuit breakers are equipped with the Visi-Trip indicator. When a Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between "OFF" and "ON" and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 60 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection.
Products specifications
|
Current Rating
|
20 A |
|
Dimensions
|
0.75 in W x 2.91 in D x 4.12 in H |
|
Interrupt Rating
|
10 kA |
|
Mounting Type
|
Plug |
|
Number of Phases
|
1 |
|
Number of Poles
|
1 |
|
Number Of Spaces
|
1 |
|
Operating Frequency
|
50/60 Hz |
|
Operating Temperature
|
104 deg F |
|
Terminal Type
|
Pressure Contact |
|
Trip Type
|
Fixed |
|
Type
|
Mini |
|
Voltage Rating
|
120 V |
|
Wire Size
|
12 to 8 14 to 8 AWG |
|
Brand
|
Square D |
|
Manufacturer
|
- No Manufacturer - |
