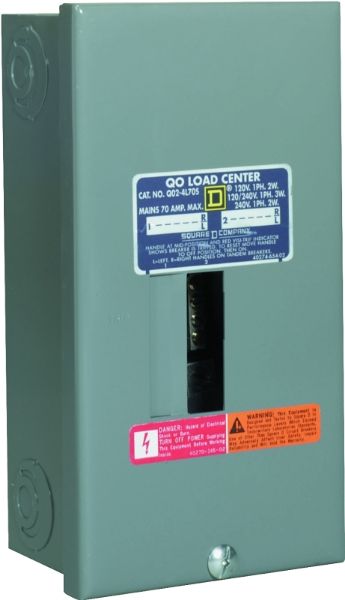

Main lug load center, intended for fixed applications. 70 A, 2 space/4 circuits. Surface mount cover with door and a NEMA type 1 enclosure for indoor use. Single phase unit, features a copper bus for conductivity and is rated for up to 10,000 SCCR. ANSI certified and UL listed.
Products specifications
Breaker/Load Center Type
|
Main Lug |
Bus Bar Material
|
Aluminum |
Cable Size
|
12 to 3 14 to 4 AWG |
Color
|
Gray |
Cover/Lid Type
|
Surface |
Current Rating
|
70 A |
Enclosure Type
|
NEMA 1 |
Finish
|
Baked Enamel |
Interrupt Rating
|
65 kA |
Mounting Type
|
Plug |
Number of Circuits
|
4 |
Number of Phases
|
1 |
Number Of Spaces
|
2 |
Voltage Rating
|
120/240 V |
Wiring Configuration
|
3-Wire |
Brand
|
Square D |
Manufacturer
|
- No Manufacturer - |
